Live Steam Scale Model Logging Donkey Engine

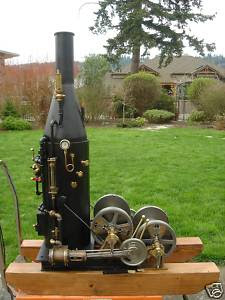

1/4 Scale Model Steam Donkey. Weighing around 250 lbs. and measuring 57" high x 24" wide x 46" long. Bronze castings include two engines and cross slides. Also included are two 6-inch diameter by 3/4-inch steel crank disks, bronze eccentric, cast iron piston and rings, and all moving parts for the engines. The two engines run on 25 lbs. of steam or air pressure. The bore is 1.75 inches with a 2-inch stroke. It also features a 10" x 24" boiler that is 3/8-inch thick with a Penberthy injector, oilers for both engines, a pop off valve set at 100 lbs. and two 9-inch spool drums with oak clutches, braking system and ratchet-and-paw.
